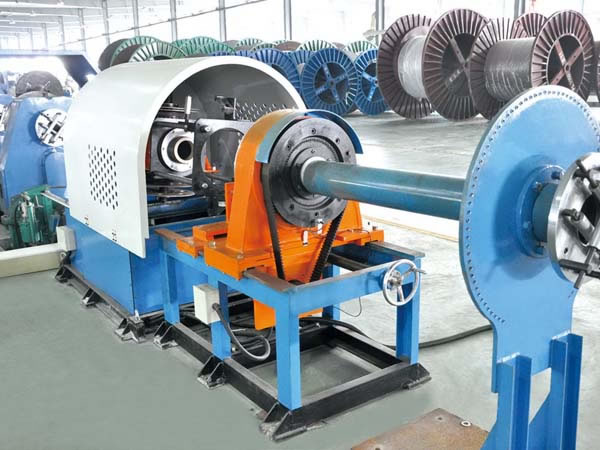

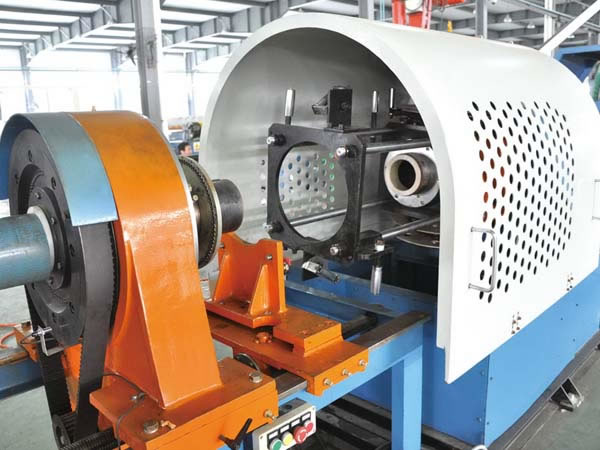

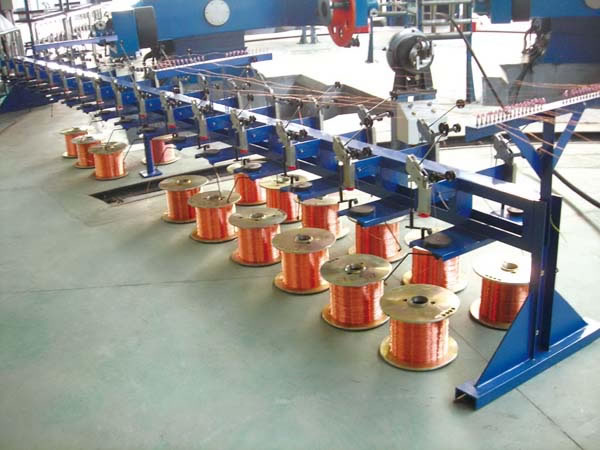

S-Z Copper Wire Screening Machine

Application
This screening equipment is designed for screening copper wire and copper tape.

Features
1. Draw drum of the S-Z copper wire screening machine is of axial cantilever structure, or is the one that needs to be placed onto the ground when using.
2. Its screening head is controlled by a servo motor, so that the requirements of positive and negative pitches can be satisfied.

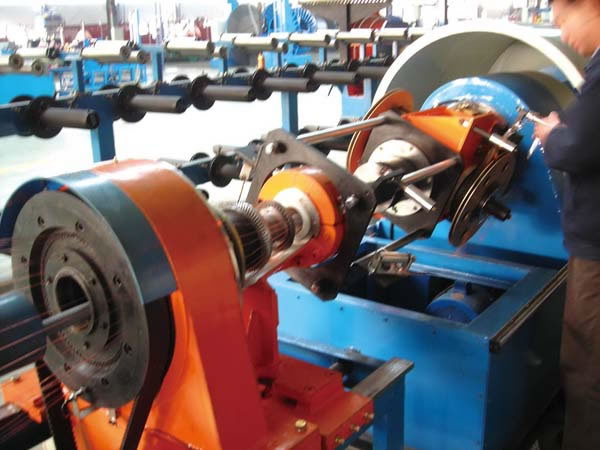

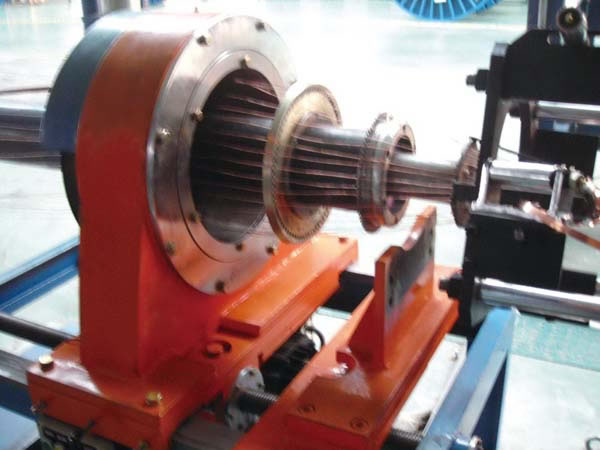

3. S-Z screening head can slide forward or backward, and can be matched with specially designed half-tangency taping unit for taping positive and negative screened wire immediately and avoiding loosen wire.
4. The rotation speed of S-Z stranding head reaches 150 rpm. The copper wire screening machine works speedily.

Sales Performance
This cable machinery has been exported to Turkey.
