Home » Products » Discontinued Products » Planetary Stranding Cable Making Machine

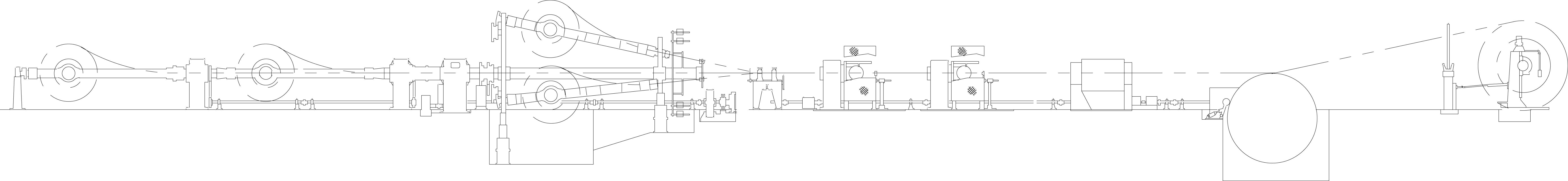

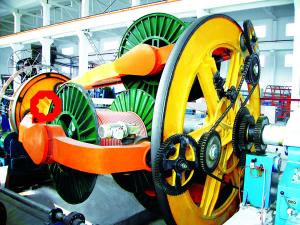

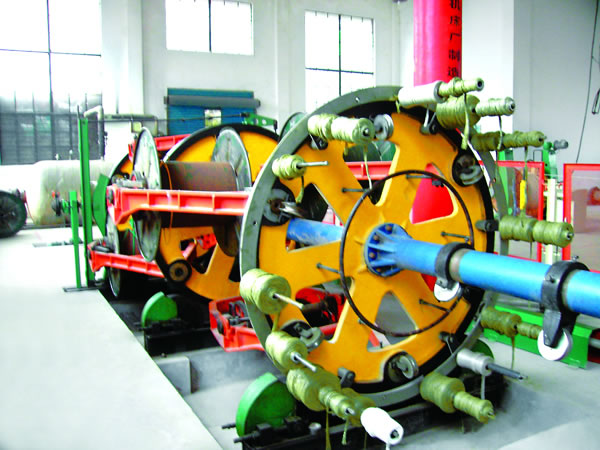

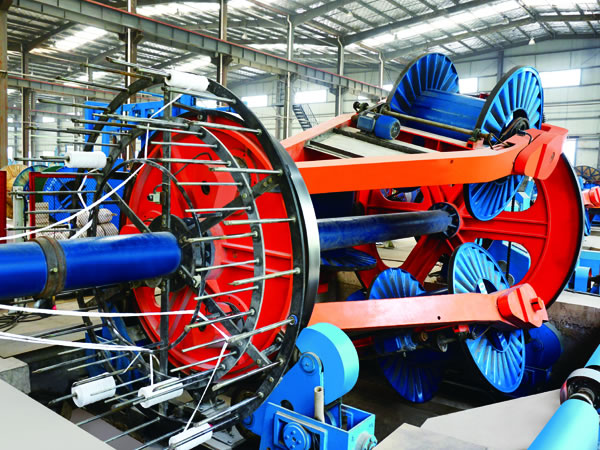

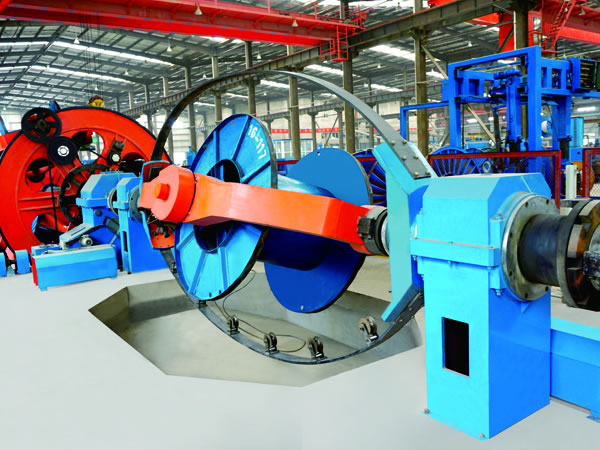

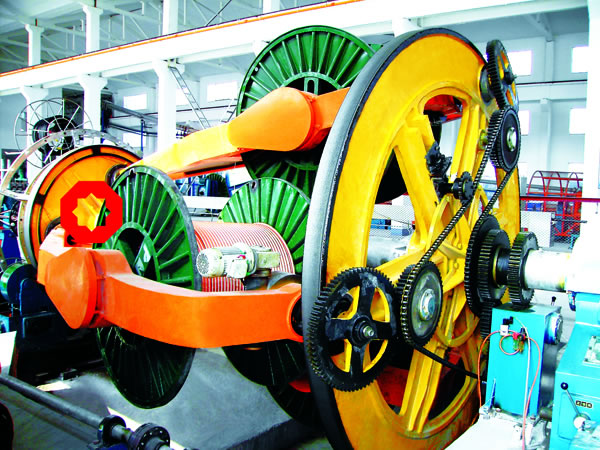

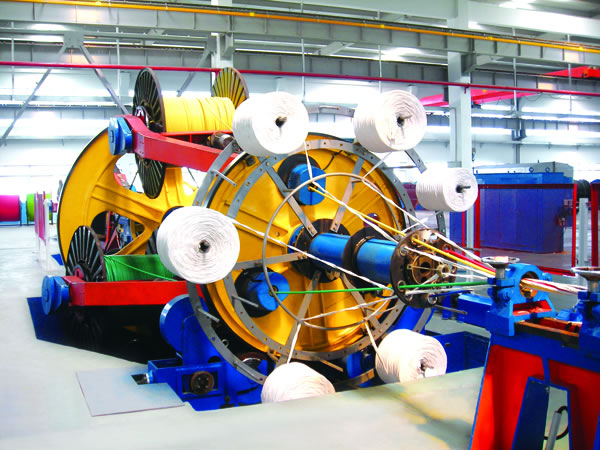

CLY Cradle Type Cabling Machine

Application
The planetary stranding cable making machine is used for making telephone cables, control cables, mining cables, or low and medium low voltage power cables.

Parameters

Bobbin Size (mm)	Max. Rotation Speed (rpm)				O.D. of Cable Core (mm)	Loading Capacity (kg)
	6B	12B	18B
Ø400	150	131	115		Ø1.0~Ø2.5	100
Ø500	123	109	96		Ø1.5~Ø6.0	200
Ø630	100	87	77		Ø2.0~Ø10.0	300
Bobbin Size (mm)	Max. Rotation Speed (rpm)				O.D. of Cable Core (mm)	Loading Capacity (kg)
	3B	6B	(1+3)B	(1+1+3)B
Ø1000	40	40			Ø5.0~Ø20.0	2000
Ø1250	32	32	32	32	Ø6.0~Ø25.0	3000
Ø1600	21	21	21	21	Ø10.0~Ø35.0	4000
